Gerber, Auto-cutter, запчасти: Каталог, Таблица 3
| # | Номер по каталогу / Parts no. | Описание / Description | Изображение / Pictures |
|---|---|---|---|
| 01. | 153500574 | IGLIDE T500 #TSI-Q203-Q3 SLEEVE, BUSHING |  |

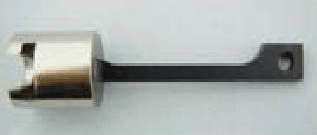

| 02. | 85971000 | SLIDER/CONNECTOR ARM, ASSEMBLY |  |
| 03. | 85963000 | SWIVEL, ROBBIN, GTXL |  |
| 04. | 85964000 | SLIDER |  |
| 05. | 85637000 | CONNECTOR, ARM, ASSEMBLY |  |
| 06. | 85838000 | GUIDE, ROLLER, SIDE |  |
| 07. | 85839000 | GUIDE, ROLLER, REAR, GTXL |  |

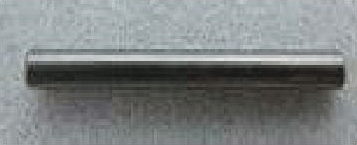

| 08. | 71575001 | SHAFT, CARB., GUIDE, KNIFE, UPPER, SMALL, S32 |  |
| 09. | 85849000 | PULLEY, SHAFT, ώE PIECE, GTXL |  |
| 10. | 85850000 | SPACER, GRIND, WHEEL |  |
| 11. | 85631001 | GRINDING WHEEL ASSEMBLY PX |  |
| 12. | 85635000 | GUIDE, ASSEMBLY, KNIFE, GTXL |  |
| # | Номер по каталогу / Parts no. | Описание / Description | Изображение / Pictures |
|---|---|---|---|
| 13. | 153500568 | BEARING FLNG S9912YMD0613F S2 STOCK DRIVE |  |

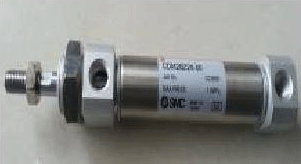

| 14. | 85624000 | PNEUMATIC ASSEMBLY, PRESSER FT, PX, GTXL |  |
| 15. | 925500608 | JOYSTICK EAO #44-800.4 |  |
| 16. | 85939001 | CRANKSHAFT, ASSEMBLY PX |  |
| 17. | 85630002 85630001 85872001 | YOKE, ASSEMBLY, GTXL |  |

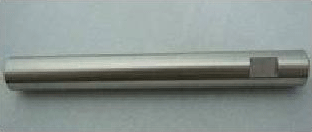

| 18. | 85844000 | SHAFT GUIDE PRESSER FOOT |  |
| 19. | 85937000 | BUSHING FD L8-NS (LM76)NO BORE DBL LNG |  |
| 20. | 85947000 | KNIFE GUIDE SHARPENER |  |
| 21. | 153500557 | BEARING THOMSON SUPER SMART #SSE-M20-0PN-WW |  |
| 22. | 91512000 | PULLEY IDLER SUB-ASSEMBLY MACHINED |  |
| 23. | 88903000 | HOUSING, SHARPENER, GTXL |  |
| 24. | 66974000 | CAMROL BEARING |  |
