Gerber, Auto-cutter, запчасти: Каталог, Таблица 2
| # | Номер по каталогу / Parts no. | Описание / Description | Изображение / Pictures |
|---|---|---|---|
| 43. | 238500008 | BRUSH, DUMORE 457-0844 (MTR > 10/1/2003) |  |
| 44. | 238500038 | BRUSH, DUMORE 457-0903-001 KNF/DRL 5/7 |  |
| 45. | 968500241 | VALVE SOLENOID W/AMP CONN SMC #NVZ5120-5MZ |  |
| 46. | 55689000 | CLUTCH, ASSEMBLY, SHARPENER, S-93/S52/72 |  |
| 47. | 67902002 | PULLEY, ASSEMBLY, END, 7/8" STROKE, S-93-7 |  |
| 48. | 57697003 59480002 | PULLEY, SUB-ASSEMBLY, IDLER, S-93-7/S72 |  |
| 49. | 57560000 | ROLLER, SIDE, LWR RLR GD, S-93-7 |  |
| 50. | 66882000 | ROLLER, REAR, LWR RLR GD, S-93-7/S72 |  |

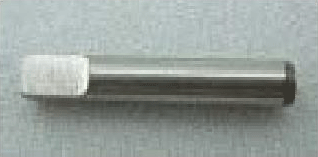

| 51. | 56435000 | PIN, SIDE, LOWER ROLLER GUIDE, S-93-5/S-93-7 |  |
| 52. | 69338000 | PIN, LOWER ROLLER GUIDE, CARB., S-93 |  |

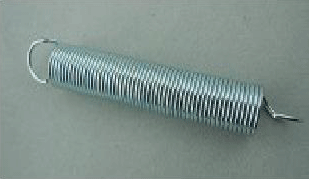

| 53. | 896500121 | SPRING LEE #LE-049E-9 1/2 ODX3 1/2X. |  |
| 54. | 93262002 75282002 | TRANSDUCER, KI, ASSEMBLY, SHORT CABLE |  |
| # | Номер по каталогу / Parts no. | Описание / Description | Изображение / Pictures |
|---|---|---|---|
| 55. | 153500219 | BEARING-SKF-7R2RS OR NSK627VV 7MM ID-22MM OD |  |
| 56. | 67484000 | PULLEY, END, S-93-7, S-93-5, LANC.IMPROVED |  |
| 57. | 67889000 | PULLEY, IDLER, LANC, S-93-7, IMPROVED |  |
| 58. | 74187000 | SHAFT, PINION, SHRPENER DRIVE, S72 |  |
| 59. | 90928000 | GEAR, DRIVE, SHARPENER |  |
| 60. | 90990000 | SHARPENER DRIVE GEAR ASSEMBLY |  |
| 61. | 86973000 | LASER ORIGIN LIGHT - GT5250/7250/S-91 |  |
| 62. | 376500082 | CYLINDER, BIMBA, PRESSERFOOT, S-91 |  |

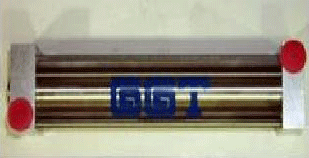

| 63. | 59350001 | AIR CYLINDER-THREAD SPEC S-93 7.0 ELEV |  |
| 64. | 340501092 | CONNECTOR, AMP, 555049-1, TRANSDUCER |  |
| 65. | 75278001 | CABLE, ASSEMBLY CUTTER TUBE S93-7, S91, S7 |  |
| 66. | 75280000 | CABLE, ASSEMBLY, TRANSD., KI, COIL |  |
