Gerber, Auto-cutter, запчасти: Каталог, Таблица 1
| # | Номер по каталогу / Parts no. | Описание / Description | Изображение / Pictures |
|---|---|---|---|
| 25. | 27864000 | SHAFT, PULLEY, ASSEMBLY, ONE PC (REPL 42885000) |  |
| 26. | 42886000 | WHEEL, GRINDING, ASSEMBLY, S-93-5/S-93-1 |  |
| 27. | 44848000 | SPACER, WHEEL, GRINDING, S-93-5 |  |
| 28. | 246500303 | BUSH PACIFIC BEARING SIM FL6 CLOSED SERIES |  |
| 29. | 55375001 | SHAFT, PRESSER FOOT, S-93-5 |  |
| 30. | 55400000 | STOP, PRESSERFOOT, S-93-5 |  |
| 31. | 55592001 | BOWL, PRESSERFOOT, S-93-5 |  |

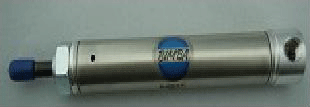

| 32. | 54896001 | CYLINDER "BIMBA" 04spec, 2.25 STR SIDE PORT, 3/4 |  |
| 33. | 75178000 | ROLLER, ASSEMBLY, ADJUSTABLE, S52/7200 |  |
| 34. | 75176000 | ROLLER, ASSEMBLY, FIXED, S52/7200 |  |
| 35. | 75177000 | GEAR, ASSEMBLY, RACK CLAMP, BEAM, S52/S72 |  |
| 36. | 75278003 | CABLE ASSEMBLY CUTTER TUBE S93-7, S91, S7 |  |
| # | Номер по каталогу / Parts no. | Описание / Description | Изображение / Pictures |
|---|---|---|---|
| 37. | 340501092 | CONNECTOR, AMP, 555049-1, TRANSDUCER |  |
| 38. | 75280000 | CABLE, ASSEMBLY, TRANSD., KI, COIL |  |
| 39. | 925500528 | KEYPAD, TECH#70120203, BLK, BEAM, S32/52/72 |  |
| 40. | 238500008 | BRUSH, DUMORE 457-0844 (MTR > 10/1/2003) |  |
| 41. | 238500038 | BRUSH DUMORE 457-0903-001 KNF/DRL 5/7 |  |
| 42. | 55401000 | PULLEY, SHARPENER, S-93-5/S52 |  |
| 43. | 54647000 | LINK, CONNECTING, S-93-5 |  |
| 44. | 55600000 | ROD, CONNECTING, BEARING S-93-5/S-93-7 |  |
| 45. | 180500091 | GEARBELT 300XL 037G BANDO 1/5 PITCH 300T |  |
| 46. | 58038000 | CYLINDER-MODIFIED LAN BAL S-93-5 |  |
| 47. | 152281030 | BEARING, FAFNIR, F33KDD5, .1875ID X .50 |  |

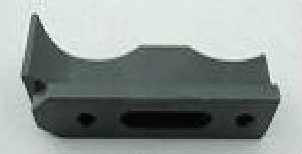

| 48. | 55515000 | GUIDE, KNIFE, REAR, S-93-5/S5200 |  |
