Gerber, Auto-cutter, запчасти: Каталог, Таблица 1


  • <
  •  Стр.02 /
  • Раздел 1 /
  • Запчасти для Gerber Auto-Cutter GT5250 и S5200
  • >


Табл.1, Начало
#Номер по каталогу / Parts no.Описание / DescriptionИзображение / Pictures

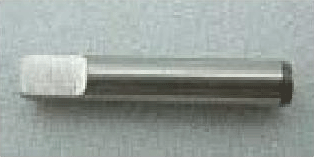

01.56435000PIN, SIDE, LWR ROLLER GUIDE, S-93-5/S-93-7Gerber Spare #56435000 Pin
02.54750001ROLLER, REAR, LWR ROLLER GUIDE, S-93-5, .078 BLADE
03.69338000PIN, REAR, LWR ROLLER GUIDE, CARB., S-93
04.54751001ROLLER, SIDE, LWR ROLLER GUIDE, S-93-5
05.66469001CRANKSHAFT, CRANK HOUSING, W/LANC., S-93-5/S52
06.66457001CRANK BEARING HOUSING, S93-5 LANCASTER
07.62132000PULLEY, DRIVEN, S-93/5, W/LANCASTER
08.54365000GEAR, SHRP DRIVE, S93/HPC
09.55689000CLUTCH, ASSEMBLY, SHARPENER, S-93/S52/72
10.67484000PULLEY, END, S-93-7, S-93-5, LANC.IMPROVED
11.62040001PULLEY, IDLER, LANCASTER, S-93/5
12.67902002PULLEY, ASSEMBLY, END, 7/8" STROKE, S-93-7

Табл.1, Продолжение
#Номер по каталогу / Parts no. Описание / DescriptionИзображение / Pictures
13.896500119SPRING, PRESSERFOOT, S-93-5
14.153500214BEARING, THK#RB4010, C-AXIS, S-93-5LANC
15.153500150BEARING, BARDEN 101FFTMTX1K3G 6.4724 B 1.1024
16.153500190BEARING, BARDEN, SFR18105SW
17.153500219BEARING-SKF-7R2RS OR NSK627VV 7MM ID-22MM OD
18.153500511BEARING, THOMSON #SUPER-8-OPN
19.968500108VALVE, SMC, NVZ5120-5MQZ-01T, S3000
20.968500241VALVE SOLENOID W/AMP CONN SMC #NVZ5120-5MZ
21.180500211BELT-Y PRIM "BRECO" 16AT5/500BFX(100 TE

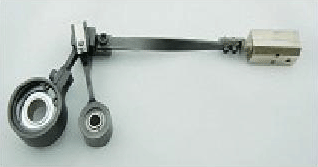

22.55621000DRIVE, KNIFE, ARTICULATED, S-93-5

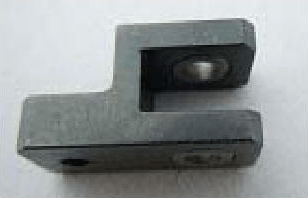

23.21610000BLOCK, PIVOT, BUSHING, S-91/S-93-5/S-93-7
24.54715000ARM, BUSHING, ASSEMBLY, SUPPORT, S-93-5/S-93-7
