Gerber, Auto-cutter, запчасти: Каталог, Таблица 2
| # | Номер по каталогу / Parts no. | Описание / Description | Изображение / Pictures |
|---|---|---|---|
| 22. | 59137000 | GUIDE, ROLLER, LOWER, .078, S-93-7 |  |

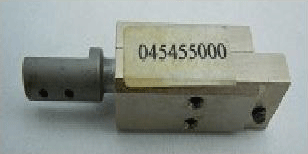

| 23. | 45455000 | SWIVEL, SQUARE, .093/.125, S-91/S-93-7 |  |
| 24. | 75177000 | GEAR, ASSEMBLY, RACʠCLAMP, BEAM, S52/S72 |  |
| 25. | 496500207 | GSKT, PYRAMID, 125"x6-1/8", 83A, PYRATHAN |  |
| 26. | 55600000 | ROD, CONNECTING, BEARING S-93-5/S-93-7 |  |
| 27. | 57447024 57447023 | HOUSING, SHARPENER, S-93-7, RPL. |  |
| 28. | 57436001 | WHEEL, ASSEMBLY, GRINDING, S-93-7 |  |
| 29. | 75150000 | DRIVE, GEAR/PULLEY, TORQUE TUBE, S72/52 |  |
| 30. | 74576000 | PULLEY, ASSEMBLY, IDLER, Y-AXIS, BEAM, S52/S72 |  |
| 31. | 86356001 | SHAFT, LATERAL DRIVE |  |
| 32. | 904500295 | STARTER ABB A63-30-11-80 CNTCR 240VAC COIL |  |
| # | Номер по каталогу / Parts no. | Описание / Description | Изображение / Pictures |
|---|---|---|---|
| 33. | 57438000 | SHAFT, PULLEY, WHEEL, GRINDING, SHARPENER |  |
| 34. | 59143002 59143001 | CLAMP, MODIFIED, SHARPENER, S-93-5/S72 |  |
| 35. | 74186000 | PULLEY, FIXED, MACHINING, SHARPENER, S-93-7 |  |
| 36. | 57437000 | SPACER, WOBBLE, SHARPENER, S-93-7 |  |

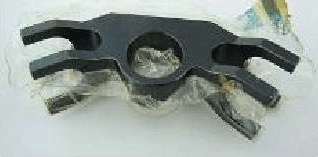

| 37. | 59156000 | YOKE, SHARPENER, S-93-7/S72 |  |
| 38. | 65832002 | UPPER CBD BLD GID ASSEMBLY |  |
| 39. | 61647002 | BRACKET, LATCH, SHARPENER, S-93-7 |  |
| 40. | 59407000 | SPRING, LATCH, ASSEMBLY, SHARPENER, (REPL 57446000) |  |
| 41. | 20568002 | CLAMP, SPRING, LATCH, SHARPENER, S-91/S7200 |  |
| 42. | 59155002 | PULLEY, IDLER, SHARPENER, .053, S-93-7 |  |
