Gerber, Auto-cutter, запчасти: Каталог, Таблица 2
| # | Номер по каталогу / Parts no. | Описание / Description | Изображение / Pictures |
|---|---|---|---|
| 01. | 180500211 | BELT-Y PRIM "BRECO" 16AT5/500BFX(100 Ӆ |  |
| 02. | 180500212 | BELT-X DRV, "BRECO", 25AT10/BFX/5CM-NO SUBST |  |
| 03. | 180500213 | BELT-X DR "BRECO" 25AT10/610BFX (S720 |  |
| 04. | 180500077 | BELT, TIMING, BSTN, 5M075150 M5HTD 75T 15W |  |
| 05. | 180500084 | BELT, TIMING, BSTN, 5M090150 M5HTD 90T 15W |  |
| 06. | 180500090 | GEARBELT-DAYCO #D220 L0 1/5 PITCH X 3/8* |  |
| 07. | 180500232 | BELT, GDYR#4-3VX335 BANDED 33.5 INCHES LO |  |
| 08. | 153500605 | BEARING, 16MM SUPER SMART BALL BUSHING |  |
| 09. | 82273000 | BEARING, C AXIS THK RA5008UUCO-E |  |
| 10. | 59268001 | DRIVE, KNIFE, ARTICULATED, 7/8", S-93-7 |  |
| # | Номер по каталогу / Parts no. | Описание / Description | Изображение / Pictures |
|---|---|---|---|
| 11. | 54715000 | ARM, BUSHING, ASSEMBLY, SUPPORT, S-93-5/S-93-7 |  |
| 12. | 21610000 | BLOCK, PIVOT, BUSHING, S-91/S-93-5/S-93-7 |  |
| 13. | 61501000 | ROD, CONNECTING, ASSEMBLY, S-93-7 |  |
| 14. | 20637001 | CLIP, PIN, RETENTION, S-91/S-93-5/S-93-7 |  |

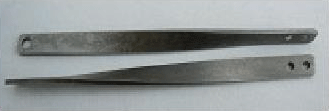

| 15. | 57292003 | LINK, CONNEC, S-93-7,7/8" REP.57292 |  |
| 16. | 798400802 | ROD KENNEMETAL SR-66-K68 GR'D CYL CBD3 |  |
| 17. | 66237000 | ROD, CAP, PUSHER, ASSEMBLY, S-93-5/7 NOSED BOWL |  |
| 18. | 59135002 | BUMPER, STOP, PRESSERFOOT, S-93-7, S72 |  |
| 19. | 61649000 | RAIL, ELEVATOR, W/BEARING |  |
| 20. | 59486001 | BEARING, LINEAR, W/ROD, S-93-7 |  |
| 21. | 66659020 | BOWL, PRESSER FOOT, S-93-7/S7200 |  |
