Gerber, Plotter, запчасти: Каталог, Таблица 6
| # | Номер по каталогу / Parts no. | Описание / Description | Изображение / Pictures |
|---|---|---|---|
| 01. | 55050000 | CABLE, ASSEMBLY, STE EL, Y-AXIS, AP-300/310/320 |  |
| 02. | 68367001 | CABLE, ASSEMBLY, FLAT WHIP, 2,4M WHIPLESS |  |

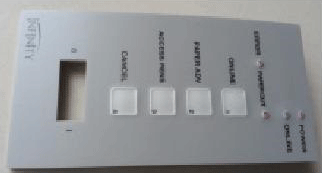

| 03. | 77510000 | INFINITY OP PANEL ASSEMBLY |  |

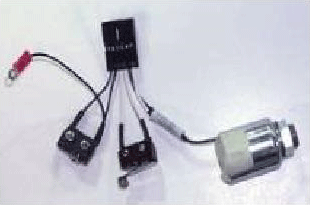

| 04. | 56041000 | SOLENOID, W/CA BLES, X-CAR., AP-3XX, W/WHIP |  |
| 05. | 88132001 | PULLEY, Y-DRIVE, ALUMINUM, INFINITY |  |
| 06. | 77533000 | X-AXIS STEP MTR EASTRN AIR ZB17GBKP-200-M |  |
| 07. | 92704000 | 91451000 MTR, X-AXIS STEP MOTOR, INFINITY, PKG |  |
| 08. | 76896000 | HOUSING, BUSHING, AP-100/300 |  |
| 09. | 76898000 | ASSEMBLY, HOUSING W/BSH, X-AXS CARR, AP320/360 |  |
| 10. | 87572001 | MOTOR, STEPPER, DRIVE ROLL INFINITY II |  |
| # | Номер по каталогу / Parts no. | Описание / Description | Изображение / Pictures |
|---|---|---|---|
| 11. | 77685000 | ASSEMBLY, NIP ROLLER, INFINITY |  |
| 12. | 77758000 | BELT, Y-AXIS, INFINITY |  |
| 13. | 77689000 | BACK TENSION HUB, RIGHT |  |

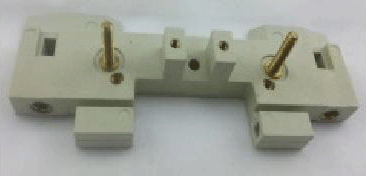

| 14. | 55162001 | BLOCK, Y-CARRIAGE, RIGHT, AP- 3XX/AJ-5XX |  |
| 15. | 77832000 | ROLLER, PAPER SENSOR |  |
| 16. | 77774000 | PULLEY, ASSEMBLY, INFINITY |  |
| 17. | 92684000 | CABLE, Y-AXIS, FLAT (92.0") |  |
| 18. | 57923001 | HOLDER, ASSEMBLY, PEN, PLASTIC CARR, AP-3XX |  |
| 19. | 53984001 | ASSEMBLY, PLUG, PAPER DRIVE, AP1XX/AP3XX |  |
| 20. | 68335001 | CABLE, ASSEMBLY, WHIP, AP-100/AP-300, FOR LLP |  |

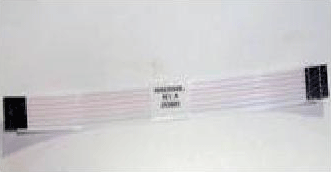

| 21. | 68235000 | WHIP JUMPER ASSEMBLY 6 COND FLAT FLEX CABLE |  |
